Blinkloader

Responsive web layouts design and development

Problem

Developing responsive web site and application was important in the company. The main challenge in building responsive pages in Blinkloader was to use few but clear styles.

Solution

I used the tachyons CSS system, which promoted functional CSS approach and allowed to change most of the essential UI components characteristics (widths, heights, positions) with applying short classes. Ability to use flexbox for the website was useful as well, allowing to change minor properties, such as the direction of the flex element (row, column) to suit different screens.

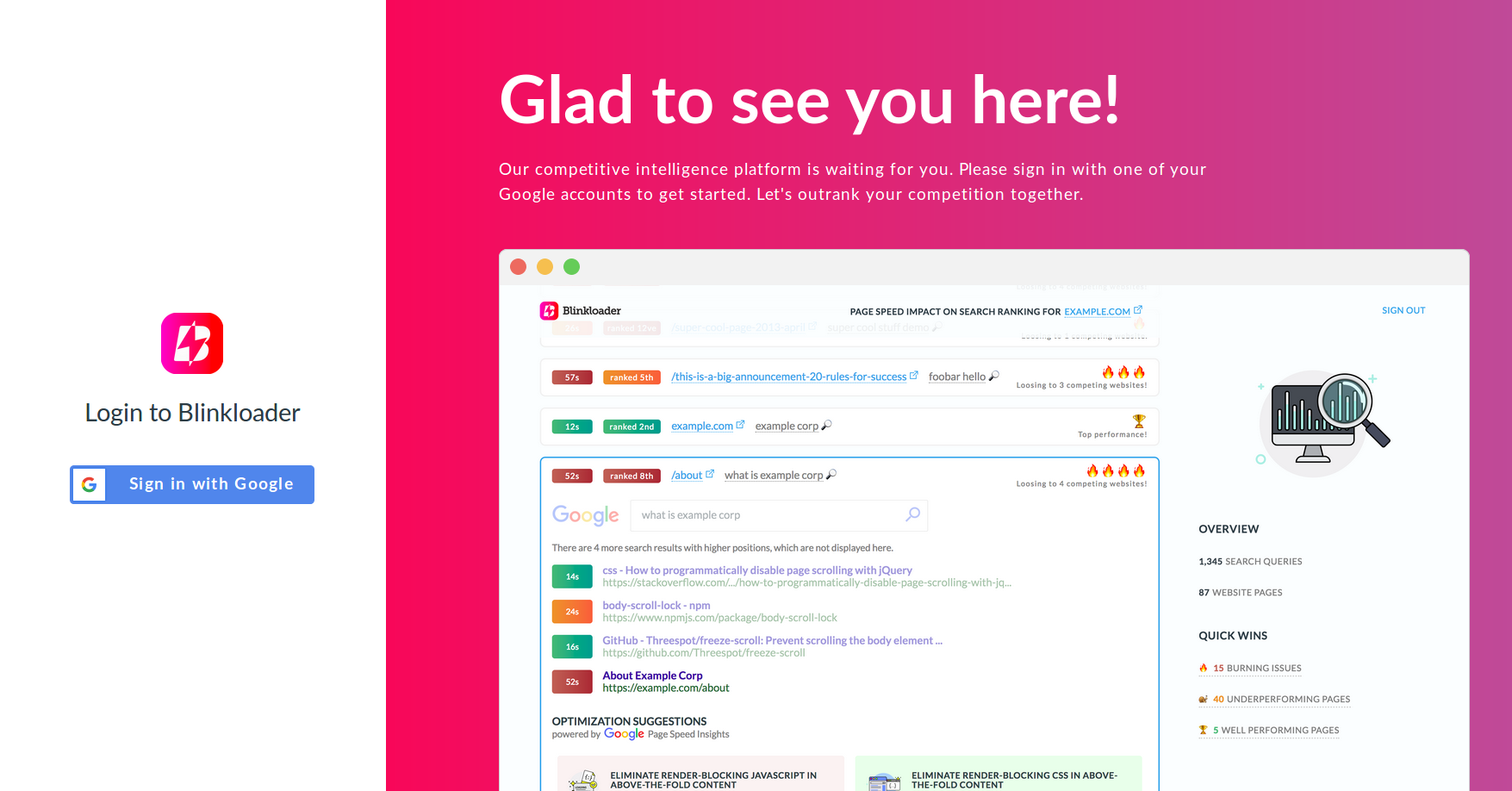

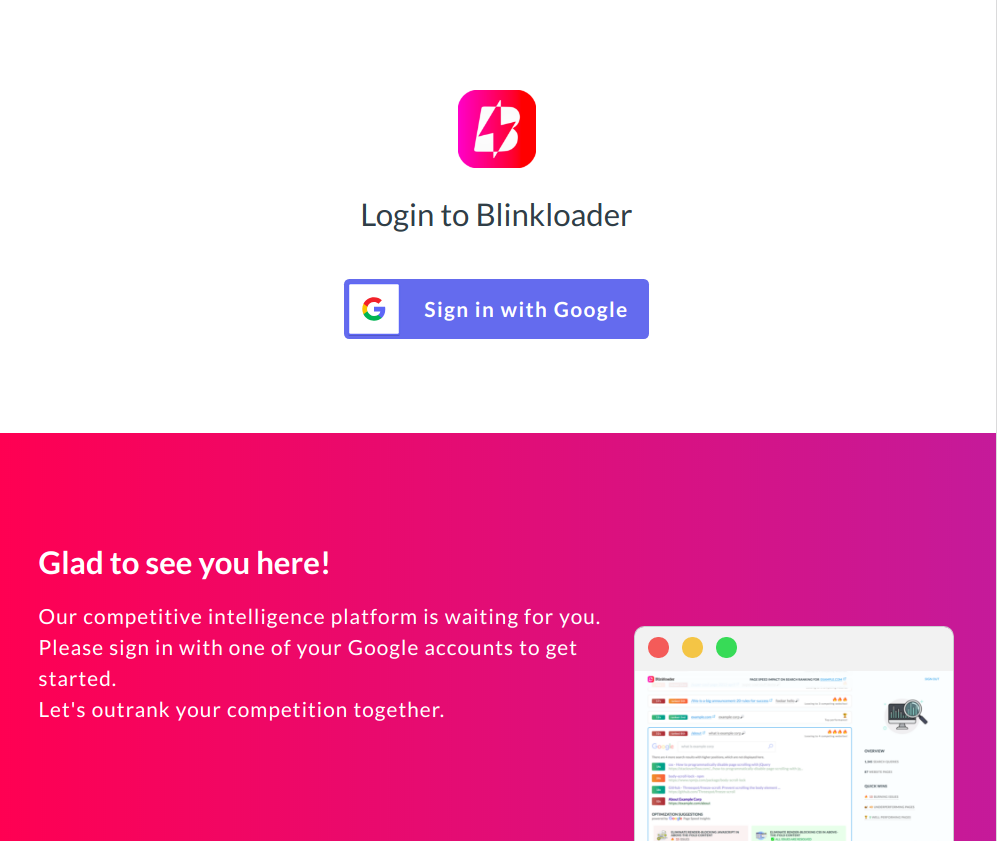

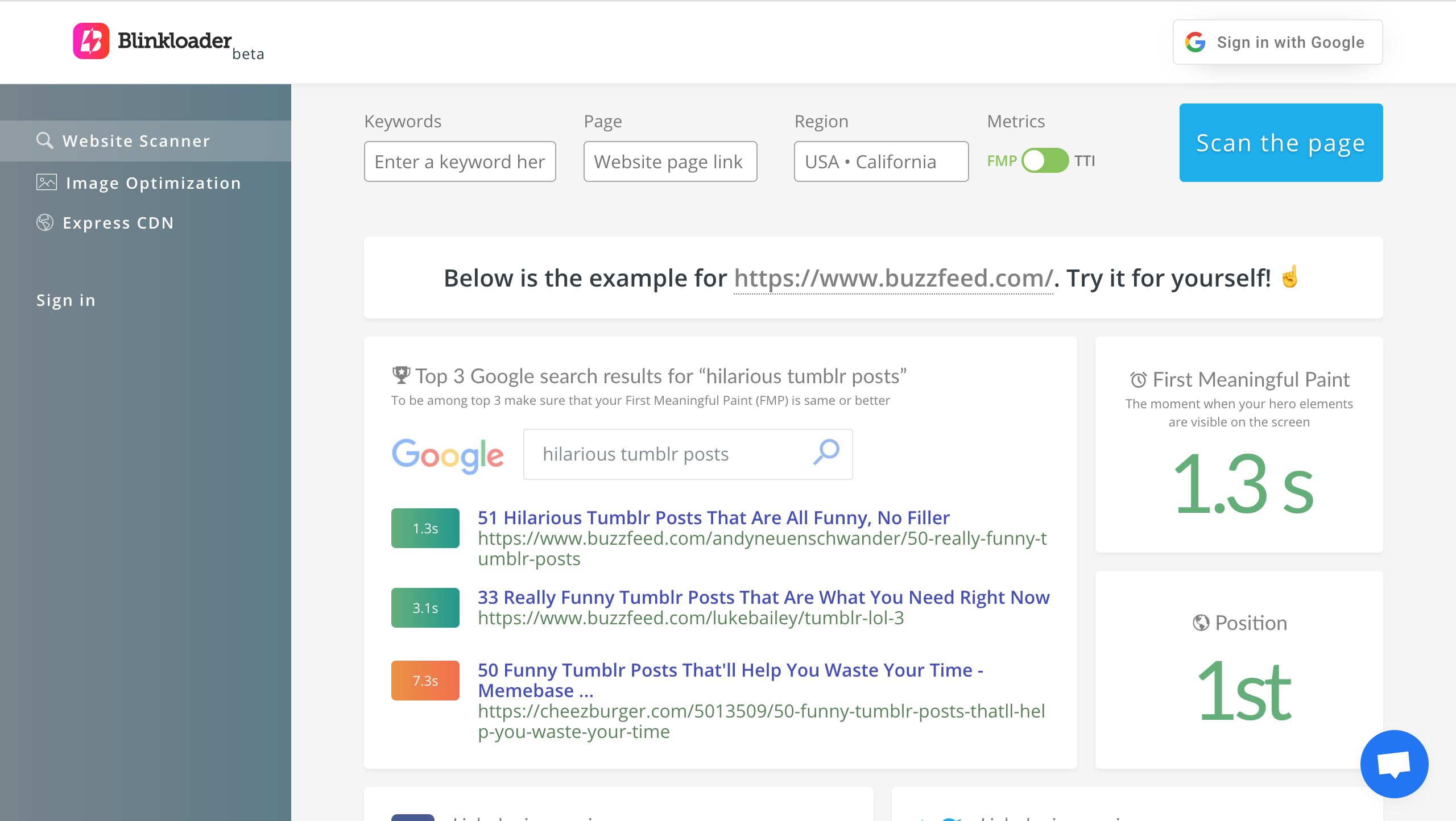

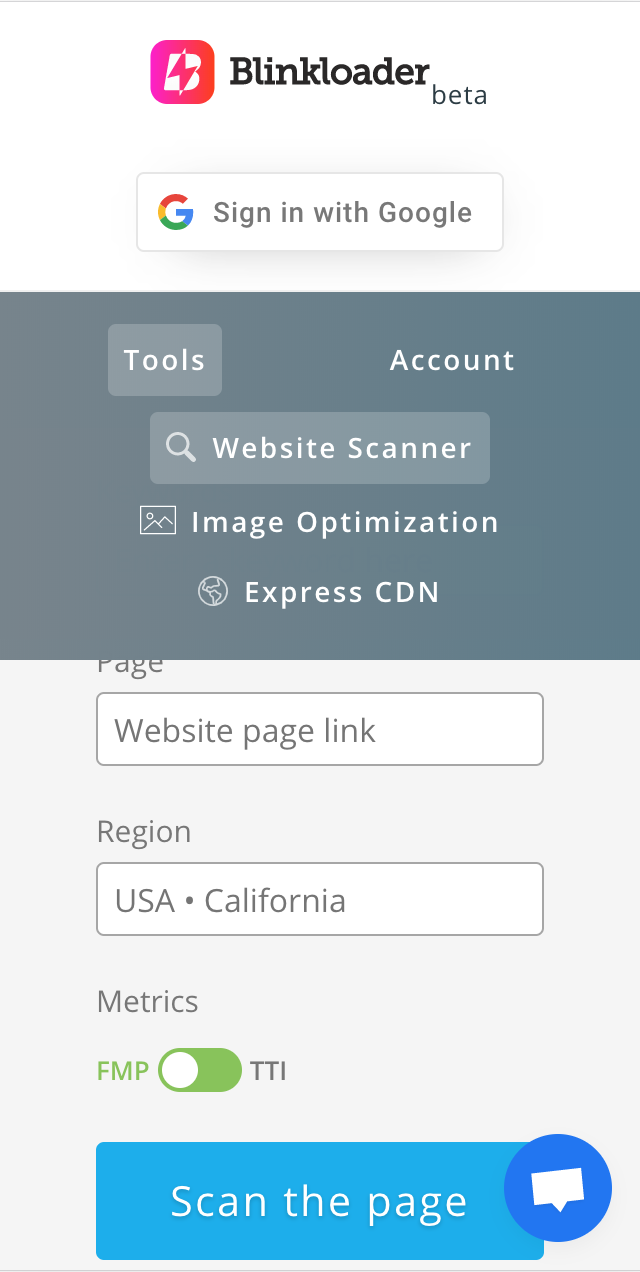

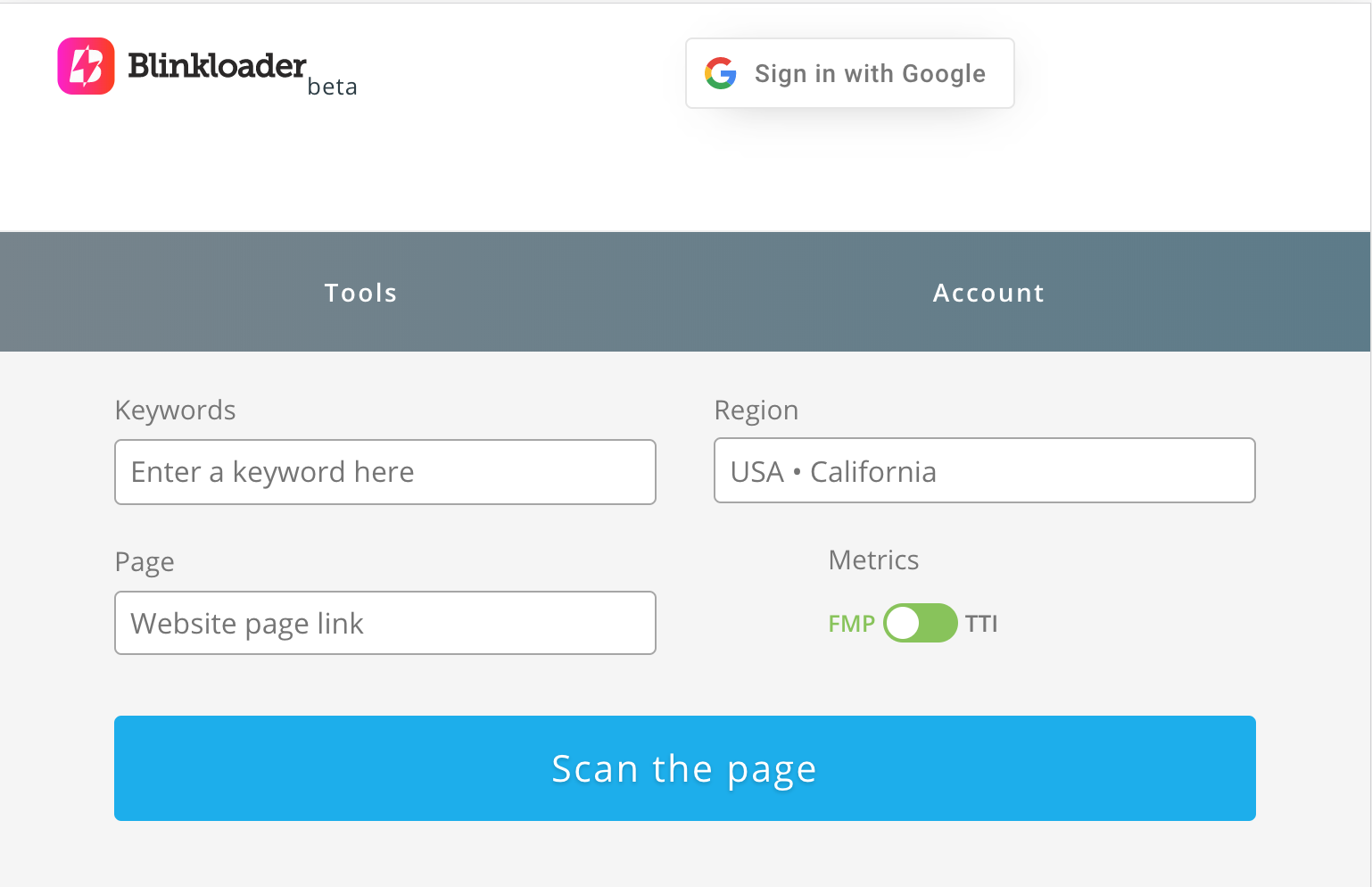

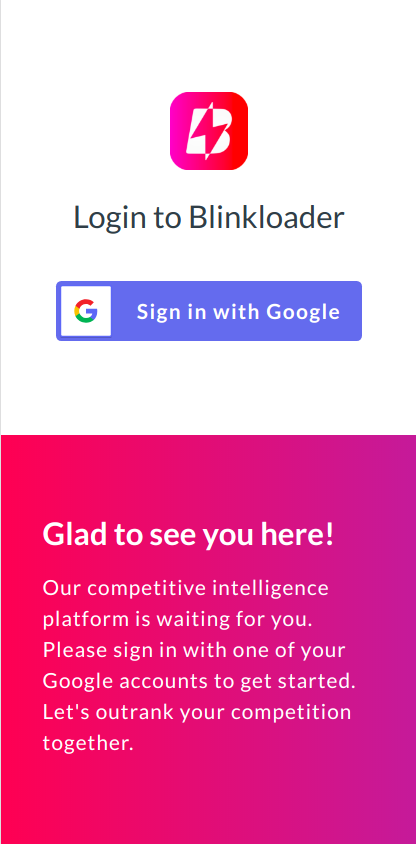

The main focus in creating responsive layouts was to maintain initial desktop design aesthetic and make texts legible on small screens. Sometimes I had to introduce new elements, such as dropdown menu instead of the sidebar on the small screen. Hamburger button was avoided to provide immediate access to main pages categories. For tablet screens, I often had to develop another view to save space.

• 1
• 2
• 3
• 4
• 5
• 6

These and other layouts were enabled by using as short lines of CSS classes, similar to this one:

class="flex flex-row-ns flex-nowrap-l flex-wrap flex-column"

This line, for example, shifts from placing elements in a row to a wrappable row for medium-sized screens and typical 1-column layout for small screens.

Loading states in apps

Problem

Working with APIs requires to account for the cases when there is no data yet, the data is loading, the data is loaded or could not be loaded/was empty.

Solution

While working in Blinkloader, we used various solutions for implementing loading states in an app.

One of them was the usage of the SVG placeholders with animated gradient, to create an illusion of faster loading. I used react-content-loader to build the previews for all the elements in the dashboard, preventing “jumps” on the page when some data is loaded.

Another one used in the Website Scanner right now is to create a separate loading state for each component, accounting for its specifics.

Reusable components

Problem

Reusable components is the very basis of React.js development. However, just creating reusable components in the project folder may invoke chaos and still bring up inconsistencies in design and functionality of a website or an app.

Solution

To maintain consistent design, we used the storybook tool to specifically develop and test some common components, when the design was known beforehand.

Initially, we used it with React.js, then with Preact.js. Below is the list of reusable components I made for the first dashboard iteration. The design was a joint team effort. One of the challenges for this iteration of components was to build tabs component without using Javascript, only using CSS.

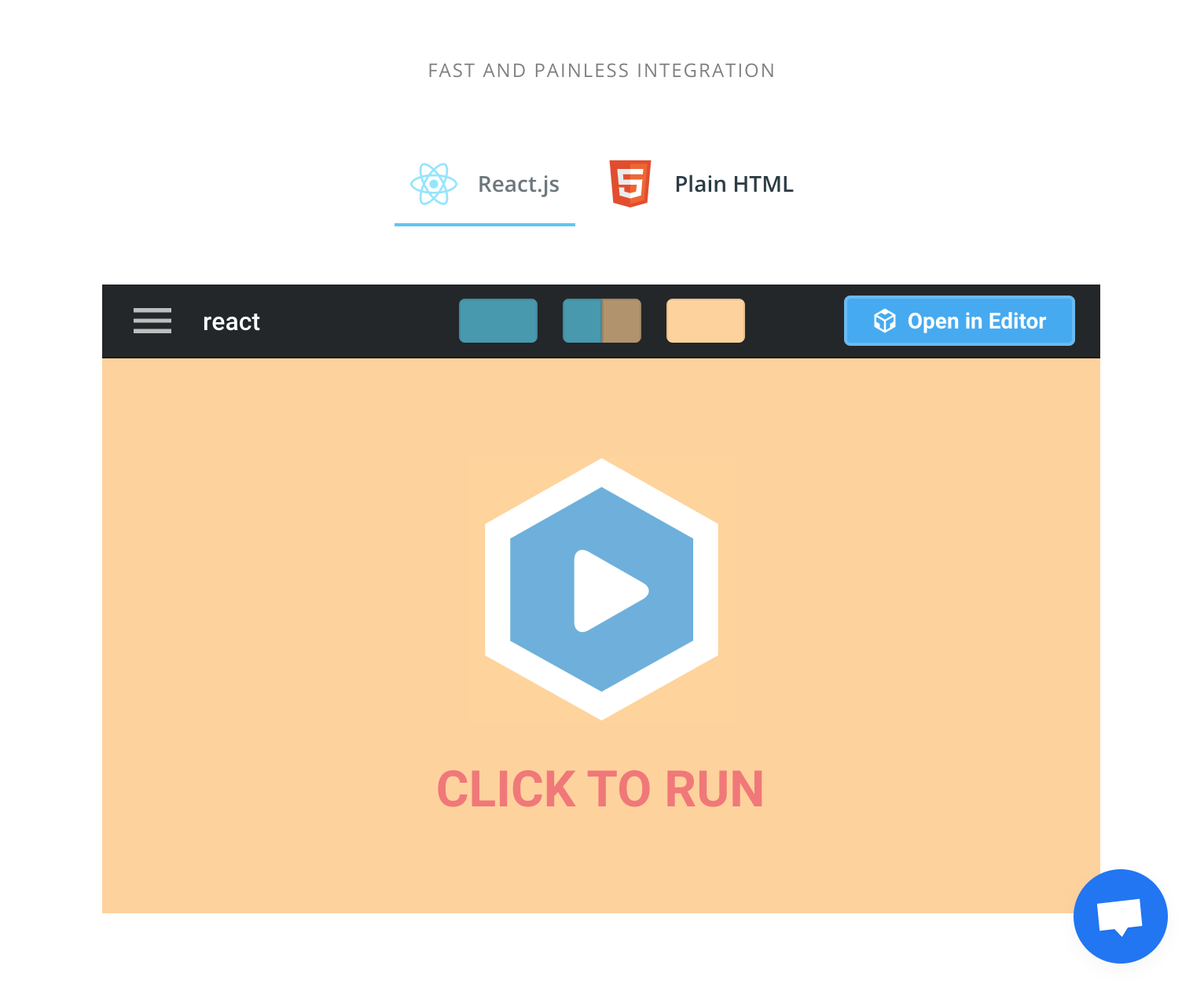

This is a demo of the CSS only tab component applied on

the Image Optimization page.
